Create a Pattern
Below we will look at a program in Excel VBA that creates a pattern.
Situation:
Place a command button on your worksheet and add the following code lines:
1. First we declare two variables of type Integer. One named i and one named j.
Dim i As Integer j As Integer
2. Second we add two For Next loops.
For i = 1 To 5 Step 2
For j = 1 To 5 Step 2
3. Next we add the line which changes the background color of the cells to light gray.
Cells(i j).Interior.ColorIndex = 15
Note: instead of ColorIndex number 15 (light gray) you can use any ColorIndex number.
4. Close the two For Next loops.
Next j
Next i
5. Test the program.

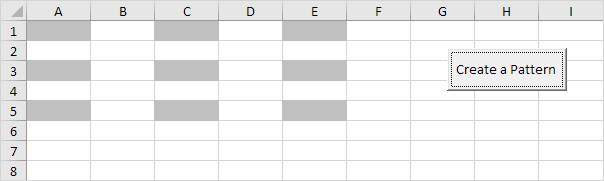

Result so far.
For example for i = 1 and j = 1 Excel VBA colors Cells(11) for i = 1 and j = 3 (Step 2) Excel VBA colors Cells(13) for i = 1 and j = 5 Excel VBA colors Cells(15) for i = 3 (Step 2) and j = 1 Excel VBA colors Cells(31) etc.
6. We are almost there. The only thing we need to do is color the cells which are offset by 1 row below and 1 column to the right of the cells already colored. Add the following code line to the loop.
Cells(i j).Offset(1 1).Interior.ColorIndex = 15
7. Test the program.

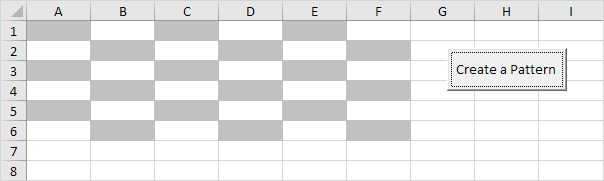

Result:
